 Xilinx Spartan-3 Development Board

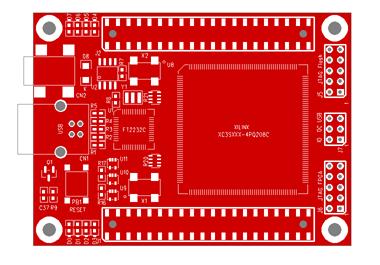

EZ3SUSB - Xilinx Spartan-3 FPGA Development board with USB interface

EZ3SUSB - Xilinx Spartan-3 FPGA development board with USB interface

Datasheet: EZ3SUSB_Datasheet.pdf

Block Diagram: EZ3SUSB Block Diagram

Key Features:

  • Connects to the host PC via USB

  • USB data transfer rate up to 1 MB/s (One MegaByte per second)

  • Features FTDI FT2232C dual port USB controller

  • Serial configuration device to store FPGA configuration data and microBlaze code

  • High Density FPGA (up to 8,046 LCs, up to 288,000 RAM bits)

  • Easy and fast FPGA/EEPROM configuration via USB or JTAG

  • Fully supported by Xilinx ISE WebPACK development system

  • Unlimited reprogrammability

  • Self-powered or USB bus-powered

  • On-board clock oscillator and reset circuitry

  • 128 I/O pins

  • Internal Clock Output/ External Clock Input

  • External Reset Input

  • Eight LEDs

  • Reset Push-button

  • Small Form Factor

  • Royalty free USB driver (Windows 98/Me/2000/XP/Server2003)

  • No USB-specific firmware programming required - simple FIFO-like interface

  • VB6/VB.NET/Delphi/C++ application examples

  • VHDL code examples

Featured FPGAs:

  • EZ3SUSB-200: Xilinx Spartan-3 XC3S200-4PQ208C

  • EZ3SUSB-400: Xilinx Spartan-3 XC3S400-4PQ208C

Applications:

  • Rapid prototyping and development of Xilinx Spartan-3 design

  • IP development and testing

  • Data acquisition and control

  • Data generator

  • USB Digital Camera Interface

  • USB to synchronous bus bridge

  • and more >>

Cables and Accessories:

  • DC Power Supply (U.S. only)

  • USB A->B cable

  • Documentation

  • USB Drivers (Windows 98/Me/2000/XP/Server2003)

  • VB6/VB.NET/Delphi/C++ application examples

  • ISE WebPACK VHDL project examples

  • Schematics



EZ3SUSB Configurations >> EZ3SUSB Frequently Asked Questions >>
