EZ1CUSB - Altera Cyclone FPGA Development board with USB interface

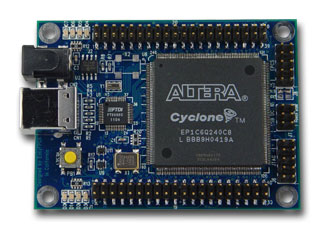

EZ1CUSB- Altera Cyclone FPGA Development Board with USB interface

Datasheet: EZ1CUSB_Datasheet.pdf

Block Diagram: EZ1CUSB Block Diagram

Key Features:

  • Connects to the host PC via USB

  • USB data transfer rate up to 1 MB/s (One MegaByte per second)

  • Features FTDI FT2232C dual port USB controller

  • High Density FPGA (up to 12,060 LEs, up to 239,616 RAM bits)

  • Serial configuration device to store FPGA configuration data and Nios code

  • Easy and fast FPGA/EEPROM configuration via USB or JTAG

  • Fully supported by Altera Quatrus II Web Edition development suite

  • Unlimited reprogrammability

  • Self-powered or USB bus-powered

  • On-board 50MHz clock oscillator and reset circuitry

  • 128 I/O pins

  • Internal Clock Output/ External Clock Input

  • External Reset Input

  • Eight LEDs

  • Reset Push-button

  • Small Form Factor

  • Royalty free USB driver (Windows 98/Me/2000/XP/Server2003)

  • No USB-specific firmware programming required - simple FIFO-like interface

  • VB6/VB.NET/Delphi application examples

  • VHDL code examples

Featured FPGAs:

  • EZ1CUSB-6: Altera Cyclone EP1C6Q240C8

  • EZ1CUSB-12: Altera Cyclone EP1C12Q240C8

Applications:

  • Rapid prototyping and development of Altera Cyclone design

  • IP development and testing

  • Data acquisition and control

  • Data generator

  • USB Digital Camera Interface

  • USB to synchronous bus bridge

  • and more >>

Cables and Accessories:

  • DC Power Supply (U.S. only)

  • USB A->B cable

  • Documentation

  • Altera Quartus II Software Starter Suite CD

  • USB Drivers (Windows 98/Me/2000/XP/Server2003)

  • VB6/VB.NET/Delphi/C++ application examples

  • Quartus II Web Edition VHDL project examples

  • Schematics
